SM321, 16DI, DC24V
6ES7321-1BH02-0AA0
SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24 V DC, 1x 20-pole
SM321,16DI,DC24V, 0.05ms Input Delay.
6ES7321-1BH10-0AA0
SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24 V DC, 1x 20-pole, 0.05 ms input delay
SM321, 16DI, DC24V, Source Input
6ES7321-1BH50-0AA0
SIMATIC S7-300, Digital input SM 321, Isolated 16 DI, 24 V DC, Source input, 1x 20-pole
SM321, 32DI, DC24V
6ES7321-1BL00-0AA0
SIMATIC S7-300, Digital input SM 321, Isolated 32 DI, 24 V DC, 1x 40-pole
SM321, 16 DI, AC/DC 24-48V, 1ch/common
6ES7321-1CH00-0AA0
SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24-48 V AC/DC with single rooting, 1x 40-pole
SM321, 16DI, DC48-125V
6ES7321-1CH20-0AA0
SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 48-125 V DC, 1x 20-pole

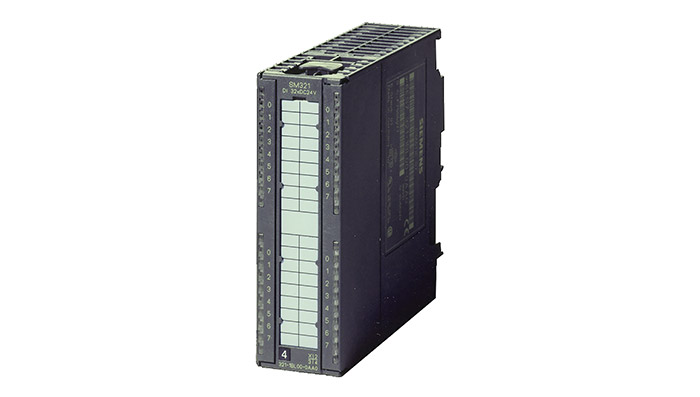

SM321, 16DI, 24V DC
6ES7321-7BH01-0AB0
SIMATIC S7-300, Digital input SM 321, isolated, 16 DI; 24 V DC, 1x 20-pole, process interrupt, diagnostics, suitable for isochronous mode
SM322, 8DO, 24V DC, 2A
6ES7322-1BF01-0AA0
SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 24 V DC, 2A, 1x 20-pole
SM322, 16DO 24V DC, 0,5A
6ES7322-1BH01-0AA0
SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-pole, Total current 4 A/group (8 A/module)
SM322 High Speed, 16DO 24V DC, 0.5A
6ES7322-1BH10-0AA0
SIMATIC S7-300, Digital output SM 322 High Speed, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-pole
SM322, 32DO 24V DC, 0,5A
6ES7322-1BL00-0AA0
SIMATIC S7-300, Digital output SM 322, isolated, 32 DO, 24 V DC, 0.5A, 1x 40-pole, Total current 4 A/group (16 A/module)
SM322 64DA, DC24V, 0,3A P-write
6ES7322-1BP00-0AA0
SIMATIC S7-300 digital output SM 322, Isolated in groups of 16, 64DO, 24 V DC, 0.3A sink output Total current 2 A/group, 8 A/module Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 required

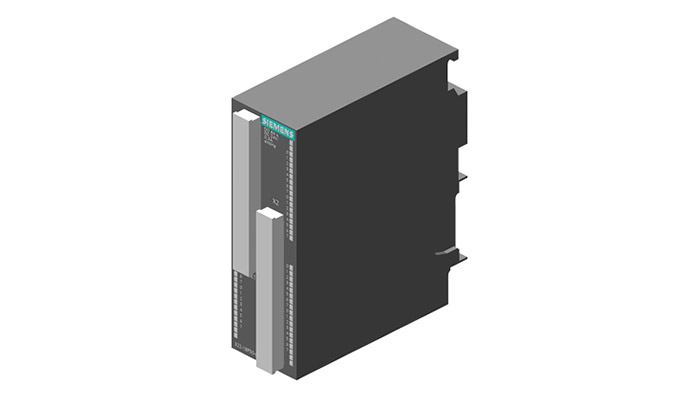

SM322 64DO, DC24V, 0.3A M-write
6ES7322-1BP50-0AA0
SIMATIC S7-300 digital output SM 322, Isolated in groups of 16, 64DO, 24 V DC, 0.3A sinking output Total current 2 A/group, 8 A/module Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 required

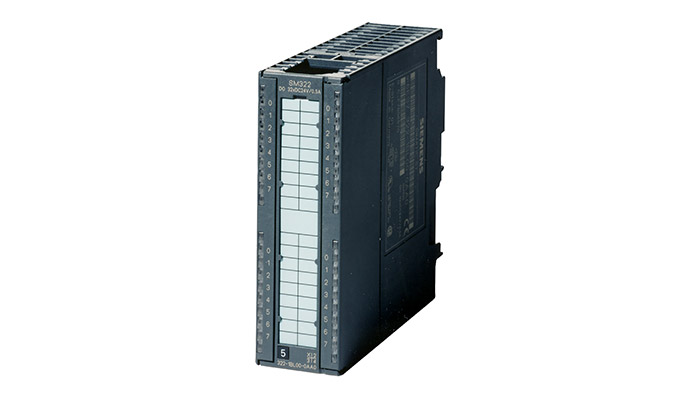

SM322, 16DO Relay
6ES7322-1HH01-0AA0
SIMATIC S7-300, Digital output SM 322, Isolated 16 DO, relay contacts, 1x 20-pole
SM322, 8DO Relay, 24VDC, 120-230V AC, 5A
6ES7322-5HF00-0AB0
SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 120-230 V AC, 5 A with RC filter overvoltage protection
SM322, 8DO, 24V DC, 0,5A
6ES7322-8BF00-0AB0
SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 24 V DC, 0.5A (1x 8 DO), Short-circuit protection diagnostics, 1x 20-pole
SM323, 8DI/8DO, DC24V, 0,5A
6ES7323-1BH01-0AA0
SIMATIC S7-300, Digital module SM 323, isolated, 8DI and 8DO, 24 V DC, 0.5 A Total current 2A, 1x 20-pole

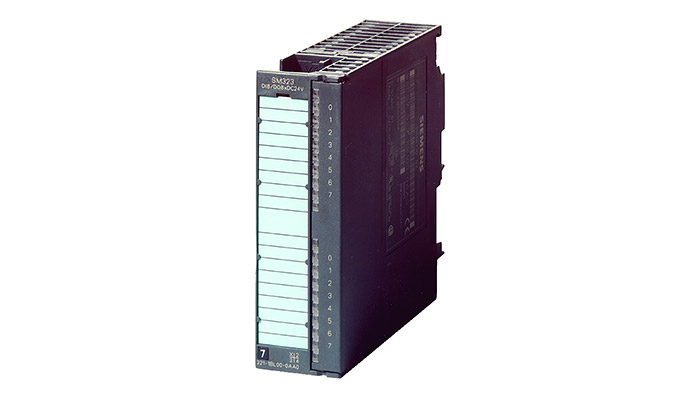

SM323, 16DI/DO, DC24V, 0,5A
6ES7323-1BL00-0AA0
SIMATIC S7-300, Digital module SM 323, isolated, 16 DI and 16 DO, 24 V DC, 0.5 A, Total current 4A, 1x 40-pole

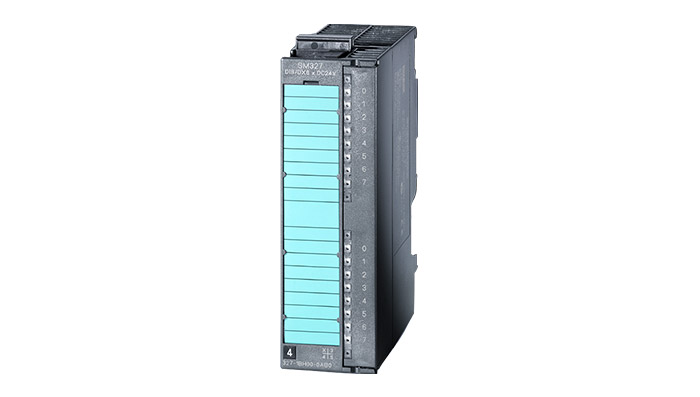

SM327, 8DI/8DX, DC24V, 0,5A
6ES7327-1BH00-0AB0
SIMATIC S7-300, Digital module SM 327, isolated, 8DI and 8DX, 24 V DC, 0.5 A 1x 20-pole; 8DX by individual channels Can be parameterized as DI or DO
SM331, 8AI, 13bit
6ES7331-1KF02-0AB0
SIMATIC S7-300, Analog input SM 331, Isolated 8 AI, resolution 13 bits U/I/resistor/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole

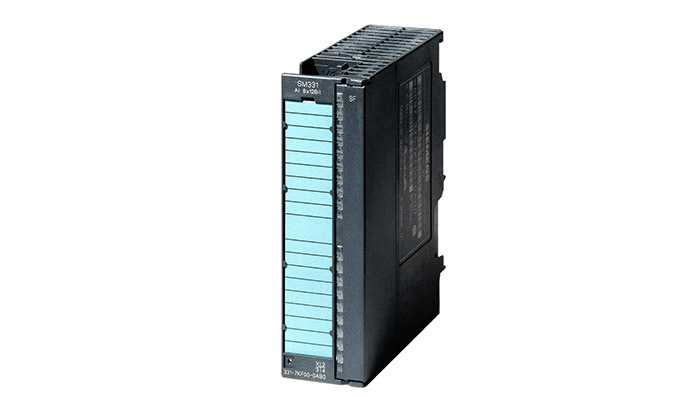

SM331, 8AI, 14BIT, 0,052MS/channel
6ES7331-7HF01-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI, resolution 14 bit, 0.052 ms/channel current, Voltage alarm, diagnostics, 1x 20-pole, suitable for isochronous mode Improved bus cycle time for isochronous mode
SM331, 2AI, 9/12/14Bit
6ES7331-7KB02-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 2 AI, Resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole, Removing/inserting with active backplane bus
SM331, 8AI, 9/12/14Bit
6ES7331-7KF02-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI, Resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole Removing/inserting with active backplane bus
"SM331,8AI,+/-5/10V,1-5V,+/-20mA,0/4-20mA, Single Rooting (50V COM)"
6ES7331-7NF00-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55ms), Single rooting (50 V COM.), 1x 40-pole
"SM331,8AI,+/-5/10V,1-5V,+/-20mA,0/4-20mA, Single Rooting (60V COM)"
6ES7331-7NF10-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit, Single rooting (60 V COM.), 4-channel operation: 10 ms, 8-channel operation: 23-95ms, 1x 40-pole
SM331, 6AI, 16bit, Thermocouple
6ES7331-7PE10-0AB0
SIMATIC S7-300, Analog input SM 331, single channel Isolated 250 V AC, 6 AI thermocouples Type B, E, J, K, L, N, R, S, T Voltage: +/-25MV to +/-1V 16 bit, 50ms, 1x 40-pole

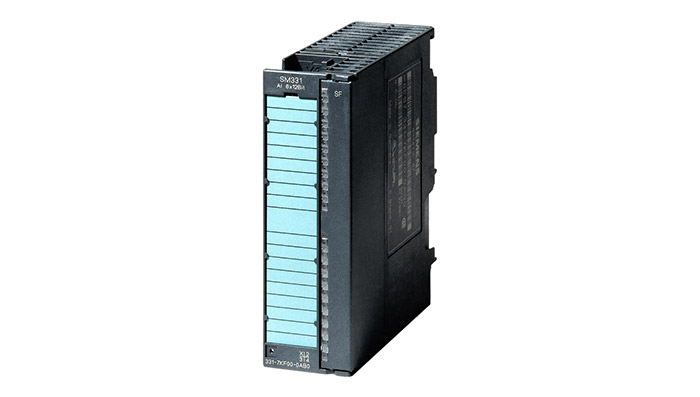

SM331, 8AI, resistor, PT100/200/1000, .
6ES7331-7PF01-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 2/3/4-wire, 8 AI, Resistor, Pt100/200/1000 NI100/120/200/500/1000, CU10, characteristics according to GOST 16 (internal 24) bit, 50ms, 1x 40-pole
SM331, 8AI, 16BIT, Thermocouples
6ES7331-7PF11-0AB0
SIMATIC S7-300, Analog input SM 331, isolated, 8 AI thermocouples Type B, E, J, K, L, N, R, S, T TXK/TXK (L) according to GOST 16 bit, 50ms, 1x 40-pole
SM332, 2AA, U/I, 11/12Bit
6ES7332-5HB01-0AB0
SIMATIC S7-300, Analog output SM 332, isolated, 2 AO, U/I; resolution 11/12 bits, 20-pole, Removing/inserting with active backplane bus possible
SM332, 4AO, U/I, 11/12Bit
6ES7332-5HD01-0AB0
SIMATIC S7-300, Analog output SM 332, isolated, 4 AO, U/I; diagnostics; resolution 11/12 bits, 20-pole, removing and inserting possible with active backplane bus
SM332, 8AA, U/I, 11/12Bit
6ES7332-5HF00-0AB0
SIMATIC S7-300, Analog output SM 332, isolated, 8 AO, U/I; diagnostics; resolution 11/12 bits, 40-pole, removing and inserting possible with active backplane bus

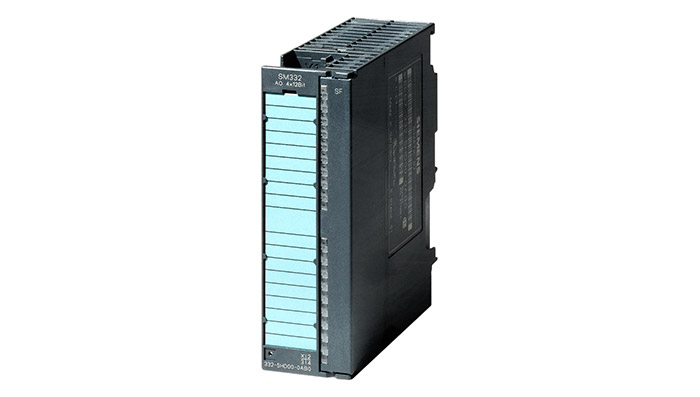

SM332, 4AA, 0-10V, 0-5V,+/-10V,+/-20mA
6ES7332-7ND02-0AB0
SIMATIC S7-300, Analog output SM 332, isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode improved bus cycle times for the isochronous mode

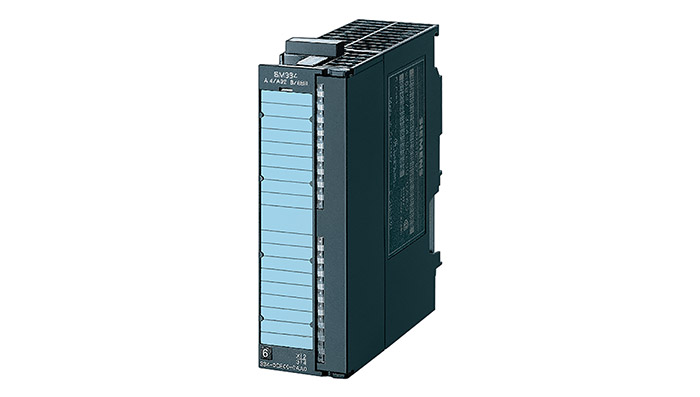

SM334, 4AI, 2AO, non isolated
6ES7334-0CE01-0AA0
SIMATIC S7-300, Analog module SM 334, Non-isolated 4 AI/2 AO, 1x 20-pole, Removing and inserting possible with active backplane bus
